HDZero Monitor

Description

HDZero Monitor Description：

Experience seamless viewing of HDZero and Analog video feeds with the HDZero Monitor. Similar to the HDZero Event VRX that is widely used for major racing events, this monitor effortlessly detects the transmission type and displays the appropriate feed instantly. With instant power-on functionality and compatibility with a wide range of flight batteries (2s-6s voltage), you can dive into your FPV adventures without delay. The high-brightness anti-glare 800-nit screen ensures clear visibility even in outdoor settings.

Share your FPV experience effortlessly with HDMI output and built-in DVR capabilities. Analog video is upscaled to 720p and de-interlaced for superior quality on both HDMI output and DVR recordings.

Whether you’re a seasoned FPV enthusiast in need of a reliable field monitor or a budget-conscious beginner, the HDZero Monitor is your perfect companion, delivering just what you need, quickly and easily.

Get the best drone racing experience with the HDZero fpv video trasmitting system!

Features:

• Instant boot-up – just flip the red slide switch similar to HDZero Goggle
• HDZero/Analog auto-switching (like Event VRX)
• Shared antennas for HDZero and Analog

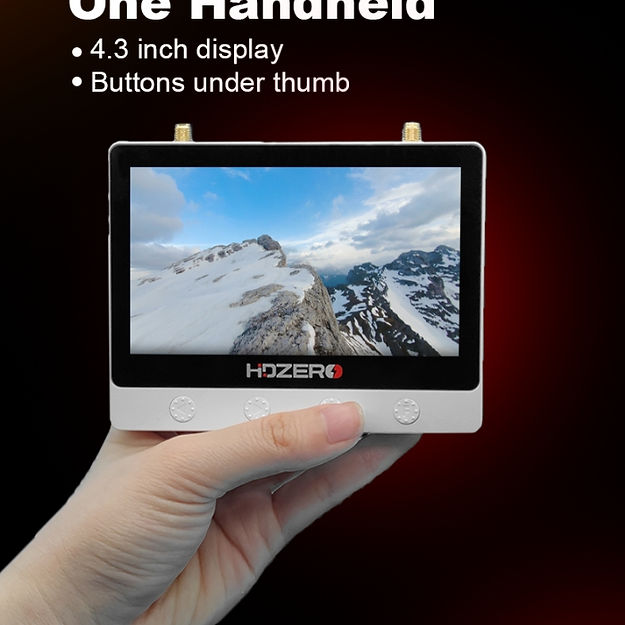

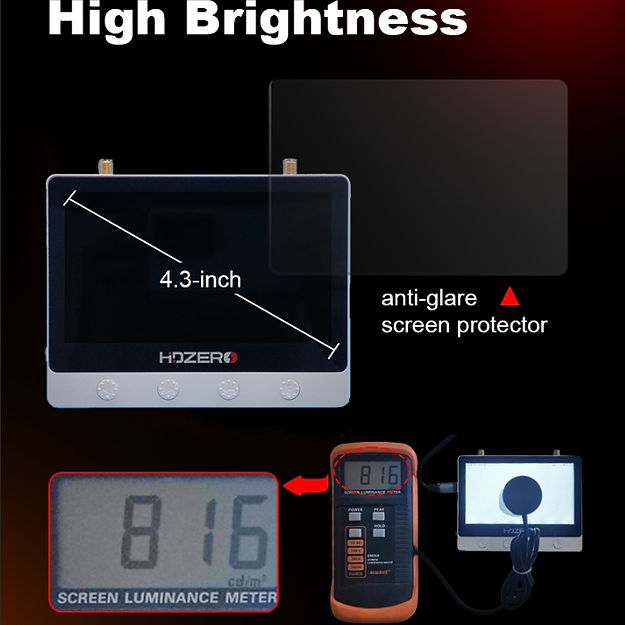

• 4.3-inch high-brightness (800 nits) 720p LCD with anti-glare screen protector
• Deinterlaced/Up-scaled analog video with adaptive comb filter

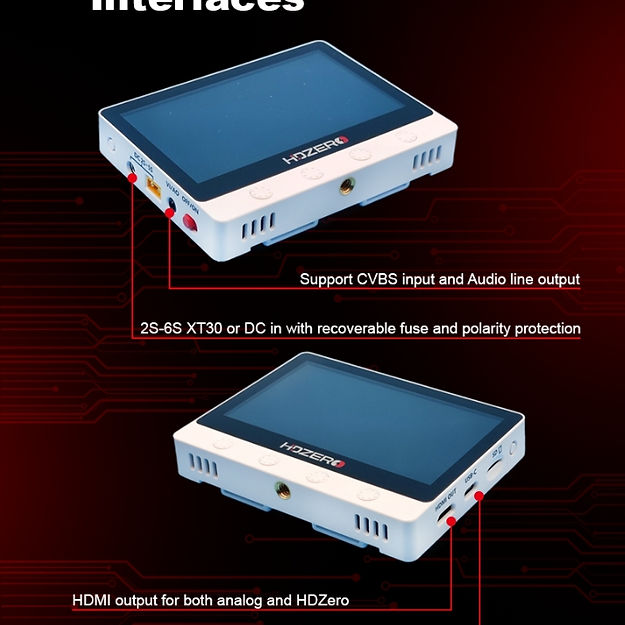

• HDMI output for both HDZero and Analog
• Built-in DVR for HDZero and Analog including deinterlaced/up-scaled analog video
• Open-source CAD files, including additional battery case and sunshield to 3D print on your own
• Open-source software so you can customize the monitor to fit your needs
• Supports CVBS input and Audio line output
• Type-C USB port for parameter adjustment and firmware updates
• 2S-6S XT30 or DC in with recoverable fuse and polarity protection
• Tripod mount with the 1/4‐20 threaded insert on the bottom

Includes:

• 1x HDZero Monitor
• 2x Lipo Strap
• 1x Anti-glare screen protector
